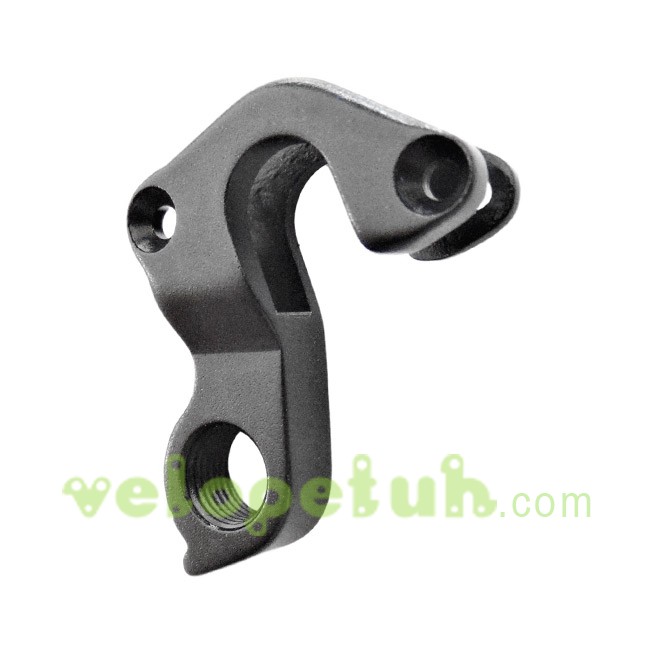

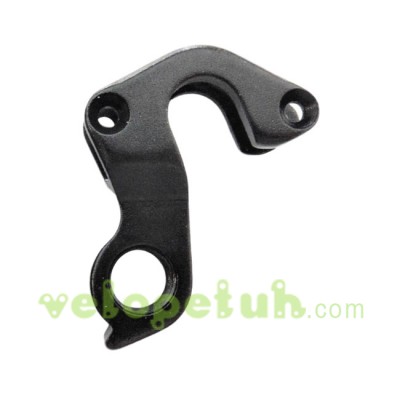

H201b: derailleur gear hanger, Cannondale Hanger #KP158, as Pilo D364 dropout for Cannondale road bikes

H201b Alloy Rear Derailleur Hanger for some Cannondale mountain bike frames. Hanger H201 has sandwich-shaped with two vertical plates and has 6.4 mm between the plates. Assembly from behind with 2 screws, threading on one side of hanger.
Please note we have a near identical hanger H200 - Cannondale KP121 which is for Cannondale MTB bikes.

Compatible with bike models (not exhaustive):

• Cannondale
  CAAD Optimo, 2017-2017
  CAAD10 2 Force Racing, 2013-2013
  CAAD10 3 Ultegra, 2013-2013
  CAAD10 4 Rival, 2013-2013
  CAAD10 5 105, 2013-2013
  CAAD10 Black Inc., 2013-2013
  CAAD10 Series, 2012-2016
  CAAD10 Women's 3 Ultegra, 2013-2013
  CAAD10 Women's 5 105, 2013-2013
  CAAD10 Women's 6 Tiagra, 2013-2013
  CAAD10 Women's Di2 Ultegra, 2013-2013
  CAAD8 5 105, 2013-2013
  CAAD8 6 Tiagra, 2013-2013
  CAAD8 7 Sora, 2013-2013
  CX 1
  Evo, 2015-2015
  Quick, 2013-2014
  Quick Carbon, 2014-2014
  Quick SL and CX, 2013-2014
  Super X, 2015-2016
  Super X Series, 2011-2014
  SuperSix EVO Black INC., 2013-2013
  SuperSix EVO HI-MOD Dura Ace, 2013-2013
  SuperSix EVO HI-MOD Dura Ace Di2, 2013-2013
  SuperSix EVO HI-MOD Team, 2013-2013
  SuperSix EVO Red, 2013-2013
  SuperSix EVO Red Racing, 2013-2013
  Supersix Evo Series, 2012-2014
  SuperSix EVO Ultegra DI2, 2013-2013
  SuperSix EVO Women's HI-MOD Dura Ace, 2013-2013
  SuperSix EVO Women's HI-MOD Red, 2013-2013
  SuperSix EVO Women's HI-MOD Ultegra Di2, 2013-2013
  SuperX Carbon Rival, 2013-2013
  SuperX Carbon Ultegra, 2013-2013
  SuperX HI-MOD Disc, 2013-2013
  SuperX HI-MOD Ultegra Di2, 2013-2013
  Synapse Carbon, 2015-2016
  Synapse Carbon 3 Ultegra, 2016-2016
  Synapse Carbon 4 Rival, 2013-2013
  Synapse Carbon 5 105, 2013-2013
  Synapse Carbon 6 Tiagra, 2013-2013
  Synapse Carbon HI-MOD 1 Black Inc., 2013-2013
  Synapse Carbon HI-MOD 2 SRAM Red, 2013-2013
  Synapse Carbon HI-MOD3 Ultegra, 2013-2013
  Synapse Carbon Women's 3 Ultegra, 2013-2013
  Synapse Carbon Women's 4 Rival, 2013-2013
  Synapse Carbon Women's 5 105, 2013-2013
  Synapse Carbon Women's 6 Tiagra, 2013-2013
  Synapse HI-MOD/Carbon, 2014-2014
• Eddy Merckx
  2016 Milano 72, Sallanches 64
• Guerciotti
  Guerciotti Eureka Air
• Kestrel
  Kestrel Legend SL 2018
• Planet X
  Planet X Exo3

Number of fasteners: 2
Attaches to frame with (2) M3x10 Flat Head Screws
Sold with screws
Mounting on frame:     Clamp
Axle diameter:     10mm (Standard QR)
Material:     aluminium
Color: Blask, Silver
Derailleur mount type:     Standard mount

Replaces :
Cannondale Hanger #KP158
Pilo D364
Derailleur Hanger # 162
Marwi GH-150
