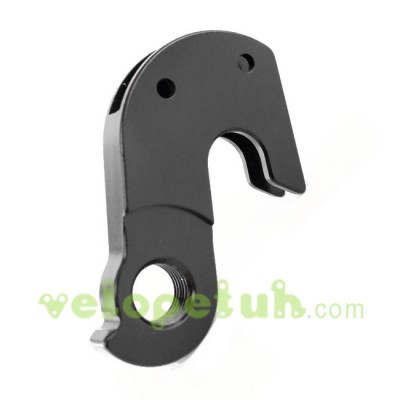

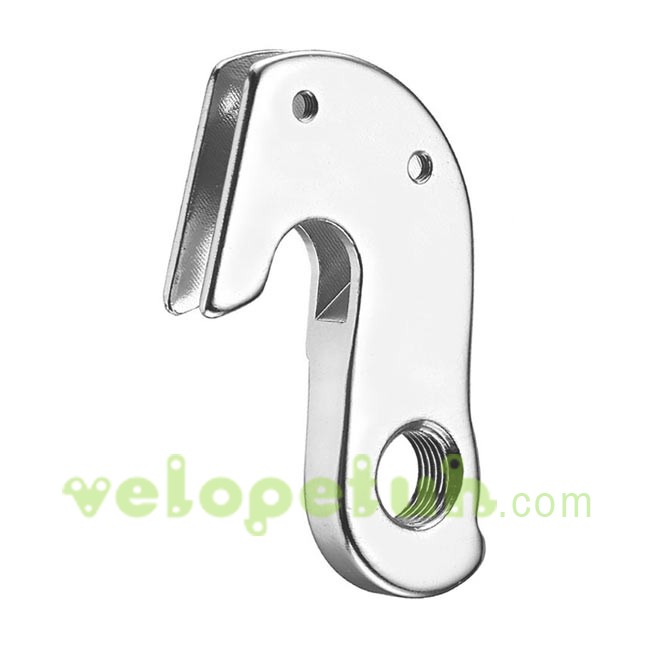

H234: derailleur gear hanger, Cannondale Hanger # A240C, as Pilo D61 dropout for Cannondale road bikes
(code: #ejH234)
Availability: In Stock
552грн
Description H234: derailleur gear hanger, bike frame saver, dropout, rear derailleur hanger
H234 Alloy Rear Derailleur Hanger for some Cannondale Road bike frames. Hanger H234 has sandwich-shaped with two vertical plates and has 4.7 mm between the plates. Assembly from behind with 2 screws, threading on one side of hanger.
Compatible with bike models (not exhaustive) :
- Cannondale
1991-2006 CAAD2-7
1991-2006 Road
1991-2006 Six 13 ROAD
Number of fasteners: 2
Screw Fitting Holes Centre to Centre 15,5mm Approx
Attaches to frame with (2) M3x10 Flat Head Screws
Sold with screws
Mounting on frame: Clamp
Axle diameter: 10mm (Standard QR)
Material: aluminium
Color: Blask, Silver
Derailleur mount type: Standard mount
Replaces :
Cannondale Hanger # A240C
Pilo D61
Derailleur Hanger # 17
Marwi GH-151
Tags: Cannondale
To be sure if this the right part, please send us a good quality photos your derailleur hanger from both sides or/and bike‘s frame part photos, where dropout was attached.Contact Us:
