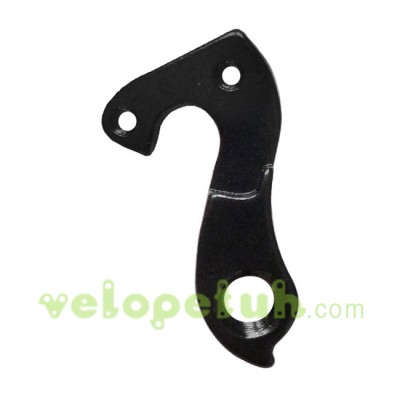

H490: derailleur gear hanger, rear gear mech hanger, dropout for bike frames, same as Pilo D686
Description H490: derailleur gear hanger, bike frame-saver, dropout, rear derailleur hanger

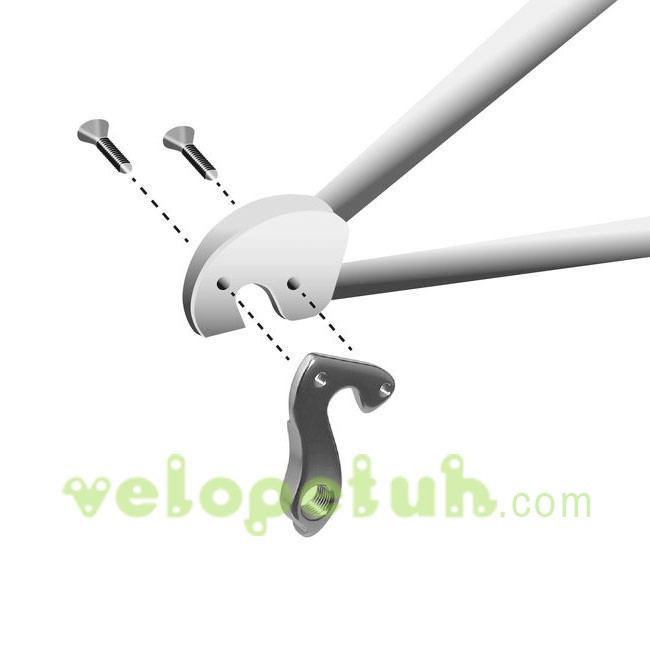

H490 Alloy Rear Derailleur Hanger. Assembly from outside with 2 screws, threading in hanger.
Known to fit at least the following frames (not exhaustive):
- CEEPO
- Crescent
Crescent Ultima - Cyclone
Cyclone RTE 29 carbon - Definitive
Definitive The One - Gitane
- Hardrocx
- Motobecane
Motobecane CF Pro JetBlack - Origine
Origine Axxome rim-brake bike frames 2018
Origine Axxome II 250
Origine Axxome II 350
Origine Axxome II RS
Origine Axxome III 400
Origine Axxome III RS - Peugeot
- Silverback
Silverback Syncra 2014
Silverback Storm 2014 - TSW
TSW Carbon PRO RACE - Univega
- Viper
- Wheeler
- White V18
Number of fasteners: 2
Screw Fitting Holes Centre to Centre 18,5mm Approx
Attaches to frame with (2) M4x7 Flat Head Screws
Sold with screws
Mounting on frame: Outer
Axle diameter: 10mm (Standard QR)
Material: aluminium
Color: Black
Derailleur mount type: Standard mount
Equivalent To :
Pilo D686
Derailleur Hanger #
Marwi GH-
Tags: Ceepo, Crescent, Cyclone, Definitive, Gitane, Hardrocx, Motobecane, Origine, Peugeot, Silverback, TSW, Univega, Viper, Wheeler, White
To be sure if this the right part, please send us a good quality photos your derailleur hanger from both sides or/and bike‘s frame part photos, where dropout was attached.Contact Us:
