H275d: derailleur gear hanger, same as Merida E02-0013 MUK 26 Pilo D592, dropout for bikes

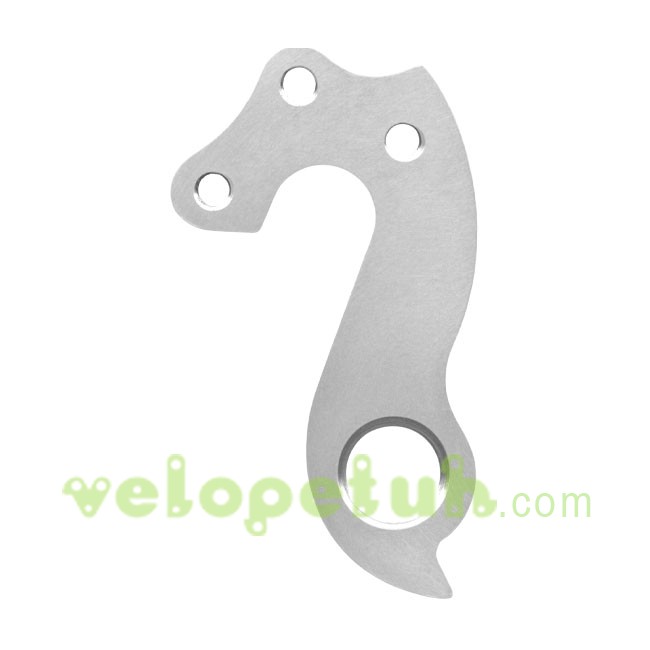

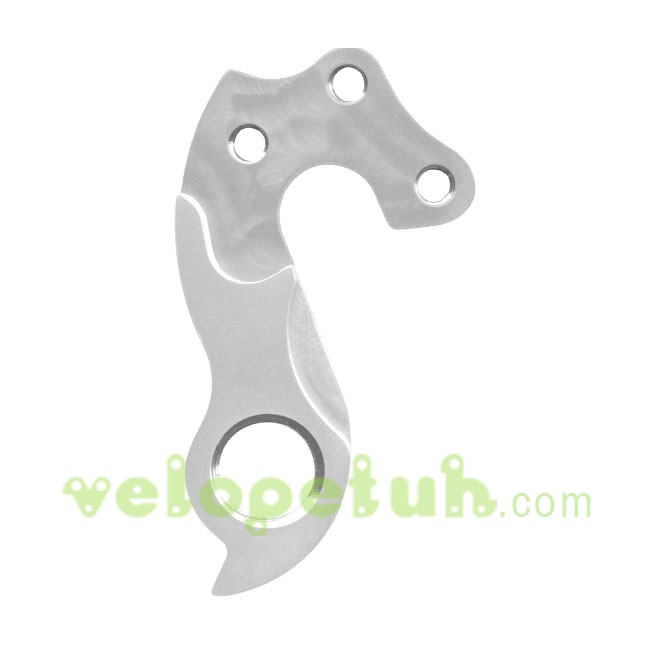

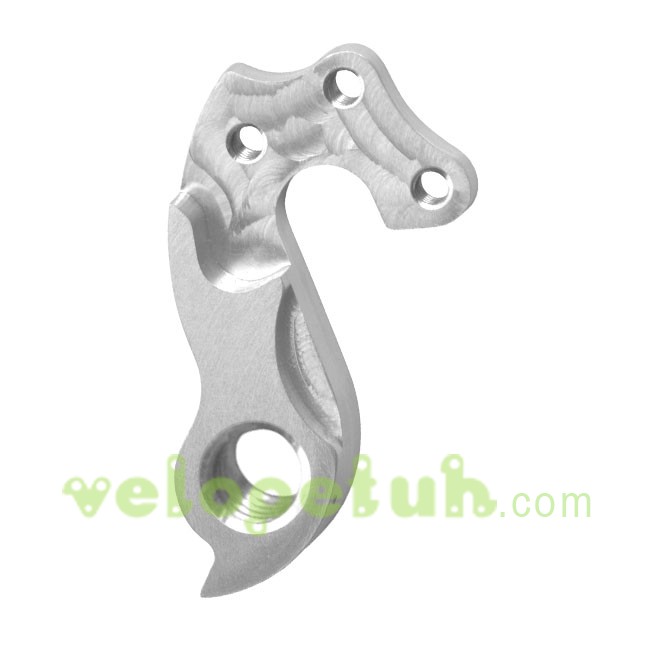

H275d Alloy Rear Derailleur Hanger. Made with CNC technology. Lighter and more durable than the cast hanger. Assembly from inside with 3 screws, threading in hanger

Compatible with models of following brands (not exhaustive):

• Centurion
• Centurion Cross Speed 2013 2014
  Centurion Cyclo Cross 2013 2014
  Centurion Gigadrive 2013
  Centurion Hyperdrive 2013 2014
  Centurion Megadrive 2013

• Merida
  Merida 2020
  REACTO 8000-E
  REACTO 6000
  REACTO 4000
  SCULTURA 9000-E
  SCULTURA 8000-E
  SCULTURA 6000
  SCULTURA 5000
  SCULTURA 4000
  SCULTURA 1000
  WARP TT 10K-E-KIT-FRM
  2300007973
  WARP TRI LIMITED (2PCS)
  WARP TRI 10K-E
  YEAR 2019
  REACTO TEAM-E / LIMITED / 9000-E / 8000-E / 7000-E / 6000 / 5000 / 4000 / 4000 JULIET
  SCULTURA TEAM-E / 9000-E / 9000 / 8000-E / 7000-E / 6000 / 5000 / 4000

  Merida 2018
  SCULTURA 6000

  Merida 2017
  REACTO TEAM-E / DA LTD / 7000-E / 6000 / 5000 / 4000
  SCULTURA TEAM / 9000-E / 7000-E / 6000 / 5000 / 4000 / 4000 JULIET
  RIDE 7000 / 5000 / 5000 JULIET / 4000 / 3000
  RIDE DISC 7000 / ADVENTURE CF / 5000 / 5000 JULIET

  Merida 2016
  REACTO TEAM-E DI2 / DA LT / 7000-E / DI2 / 6000 / 5000 / 4000 / 3000
  RIDE DISC 7000 / 5000 / 3000
  SCULTURA TEAM / 9000 / 7000-E / 6000 / 5000 / 4000 / 4000 JULIET
  WARP TRI 7000-E / 5000 / 3000

  Merida 2015
  SCULTURA 9000 / 7000 / 6000 /5000 / 4000 / 4000 JULIET
  RIDE TEAM / 7000 / 5000 / 4000 / 3000
  RIDE DISC 3000 / 7000 / 5000
  REACTO TEAM-E / DA LTD / 7000 / 5000 / 4000
  WARP TRI 7000-E / 5000 / 3000
  SPEEDER 3000 / 5000

  Merida 2014
  SCULTURA CF TEAM-E / 907 / 906-C / 905 / 904 / 904 / JULIET
  RIDE CF TEAM / 97-CE / 97 / 95-E / 95
  RIDE CF JULIET 95 / 94 / 93
  REACTO CF TEAM / 907-E / 906-S / 905

  Merida 2013
  SCULTURA SL 909 / TEAM
  SCULTURA PRO 907-E / 907
  SCULTURA COMP 906 / 905-E / 905 / 904 / JULIET 904 / JULIET 903
  RIDE CARBON 95-30/ 95 / 94-30 / 94 / 93-30 / 93
  REACTO 909-E / 907-E / 907 / 904

  Merida 2012
  SCULTURA EVO DA / 906 / 905 / 904 / JULIET
  REACTO TEAM / 909 / 907 / 904

  Merida 2011
  SCULTURA EVO 906 / 905 / 904
  SCULTURA JULIET
  REACTO TEAM / 909 / 907

  Merida 2010
  SCULTURA EVO / SCULTURA / SCULTURA JULIET

• Protek

Number of fasteners: 3
Attaches to frame with (3) M4x7 Flat Head Screws
Sold without screws
Mounting on frame:     Inner
Axle diameter:     10mm (Standard QR)
Material:     CNC machined aviation aluminium
Color: Silver
Derailleur mount type:     Standard mount

Equivalent To:
Merida E02-0013-0, MUK 26
Art.-Nr.: 70184
Item.No.: 2311004393
Item.No.: RE-50 2311003927
tem.No.: E02-0013-0 2311003734
Pilo D592
Derailleur Hanger #
Marwi GH-
